Jiangsu Yawei Transformer Co.,Ltd. is one of the leading manufacturers and suppliers of enameled copper (aluminum) rectangle wire in China. Please feel free to buy high quality enameled copper (aluminum) rectangle wire from our factory. Customized orders are welcome.
Products Description

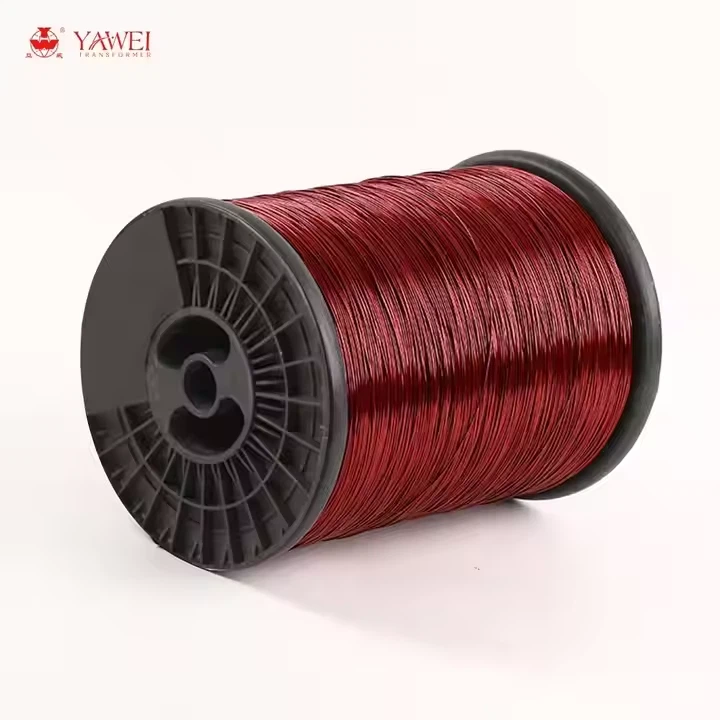

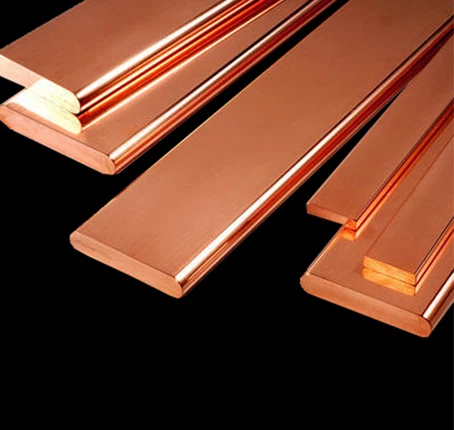

Enameled Flat Wire(Coper/Aluminum)
Size Range
Insulation Thickness grade | Insulation Thickness (mm) | ||
Min. | Norminal | Max. | |
1 | 0.06 | 0.085 | 0.11 |
2 | 0.12 | 0.145 | 0.17 |
Name | Enameled Rectangular Wire( Copper/Aluminum) |
Size Range | Narrow Side Size：0.2mm-5.6mm Wide Side Size: 3mm-16mm Recommended Ratio of the Width and Thickness: 1.5 Customize Available |
Thermal Class (℃) | 120(Class E);130(ClassB),155(Class F),180 (Class H);200 (Class C);220 (Class C+); 240(Class HC) |
Insulation Material | E120℃ /PVF – Polyvinyl Acetal B130℃/F155/H180℃/UEW- Polyurethane B130℃/F155℃/PEW- Polyester/Modified Polyester H180℃/EIW- Polyester-imide C200℃/ EI/AIW- Topcoat:Polyesterimide /Undecoat:Polyamideimide C+220℃/AIW- Polyamideimide HC240℃/PIW-Polyimide |
Insulation thickness | Grade 1,2 |

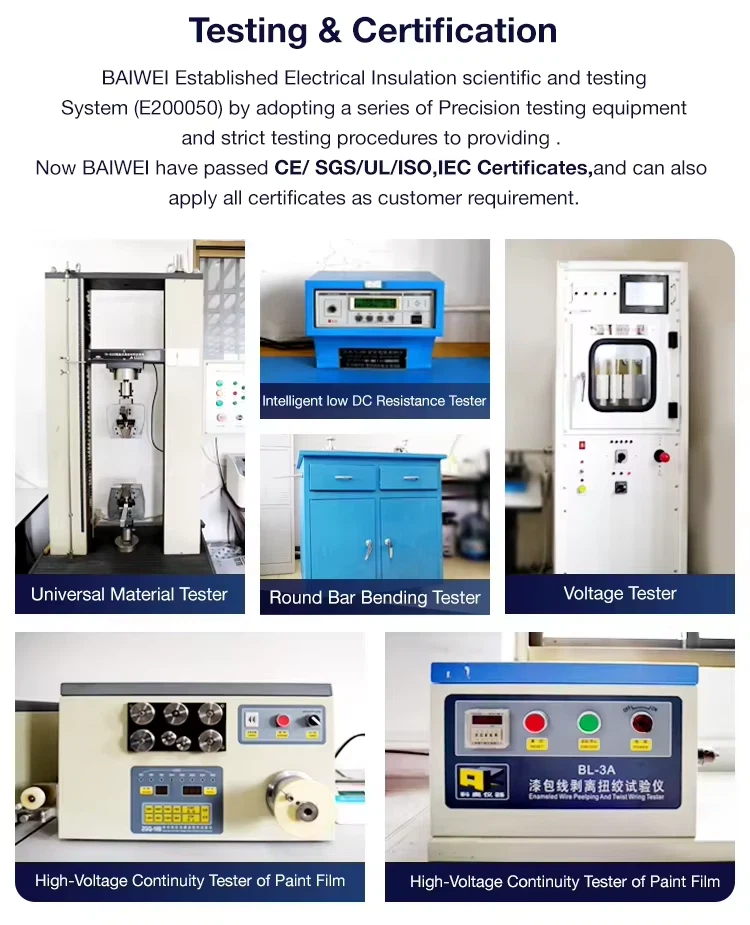

Certificate | UL,ISO,CE,SGS,REACH,RoHs |
Standard | IEC,NEMA,GB,JIS |

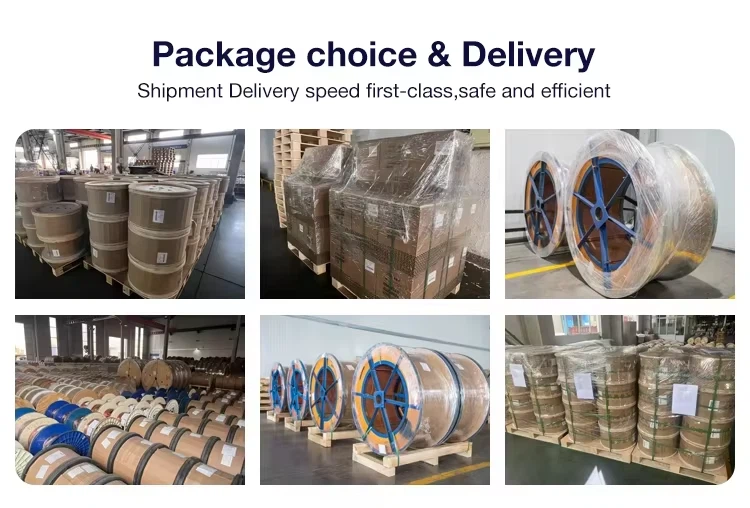

Package | Plastic Spool and Wooden Spool ,Customize available |
Budweiser Electric is a production, processing and sales enterprise belongs to YAWEI GROUP. Its main products are 10-220KV dry-type transformers, electromagnetic wires of oil immersed transformers, reactors, enameled wires for engines, etc. Budweiser Electric has introduced multiple high-quality production technologies and equipment from the industry, and invests a large amount of funds in technical improvement and research and development every year. It has designed multiple series, specifications, and applicable products that can meet the needs of customers of different types and purposes. Enamelled copper aluminum flat wire includes 120 acetal/self-adhesive acetal enameled copper (aluminum) flat wire, 130 polyester enameled copper (aluminum) flat wire, 155 modified polyester enameled copper (aluminum) flat wire, 180 polyester imide enameled copper (aluminum) flat wire, 200 polyester imide/polyamide imide composite enameled copper (aluminum) flat wire, and 220 polyamide acid imide enameled copper (aluminum) flat wire. All products are safe, stable, and reliable, using excellent raw materials for durability.
FAQ
Q: What is the annual production capability of winding wire?
A:Our Company’s annual production is about 100000 tons.
Q: Branch wire factory’s Main Product And Service:
A: -Round /Rectangular Enamled Wires (Copper/Aluminum) -Papar/ Film Covered Winding Wires
-Composite wire and Continuously Transposed conductors(CTC)
-Transformer Producing Solutions (Producing Equipment/Testing Equipment/Design Service )
-All Kinds of Transformers OEM& ODM ( Oil type/Dry type /Power type/ Pad Mounted etc.)
Q:Temperature-resistant grade of winding wire:
A: 120/130/155/180/200/220/240 degrees
Q:Why customer choose our wire?
A: BAIWEI Electric is Established in 1990, is Subsidiary of YAWEI Group, now it’s one of top winding wire and transformer manufacturer in China, which covers an area of 500,000 ㎡,annual output is more than $ 1.7 billion dollars, Can not only Providing All the Winding wires and Wrapes wires ,CTC, Insulation materials and other parts of transformers, But also can provide Transormer Design and Producing Machines ,Testing equipment ,and Also Providing Transformer OEM& ODM Service .
Q: How to get free samples and quotation sheet:
A: Please leave your request through mailbox or instant message for free samples and you just need to pay for the shipping cost.
