Jiangsu Yawei Transformer Co.,Ltd. is one of the leading manufacturers and suppliers of 50kva single phase pole mounted transformers in China. Please feel free to buy high quality 50kva single phase pole mounted transformers from our factory. Customized orders are welcome.
Products Description
YAWEI Transformer’s 50 kVA single-phase pole mounted transformer, is certified with UL listing and backed by CESI inspection report. With a wide voltage range of 2.4-34.5kV, the transformer adheres to various international standards such as ANSI, IEEE, CSA, IEC, and DOE, ensuring global compatibility and performance.Drawing on 30 years of expertise in design and export, the YAWEI Transformer team is equipped to cater to diverse requirements, offering customizable solutions for special transformers. With a strong commitment to customer satisfaction and quality, YAWEI Transformer delivers reliable, efficient, and safe products to meet the unique needs of clients worldwide.
Primary Voltage Ratings: 13.8 kV/12.47kV/2.4/7.2kV/14.4kV/24.94kV/34.5kV/27.6kV,ect
Secondary Voltage Ratings: 120/240V; 240/480V;347/600Y;277V;347V
H.V. TAP RANGE: 2280-36225V
CONNECTION TYPE: Ii0/Ii6
TYPE: Conventional/CSP
BIL: 30-150kV
Standards: IEEE/ANSI/CSA/IEC/DOE
Application: Distribution,Ultilities
Technical spec for single phase pole mounted transformer
| Rated Power | Primary Voltage | Secondary Voltage | No load loss (W) | Load loss (W) |
| 10 KVA | 6KV 6.66KV. 6.35KV 7.2KV 7.6KV 10KV 11KV 13.2KV 13.8KV 19.92KV | 120/240V 240/480V 139/277V 120/208V 600V | 36 | 120 |
| 15 KVA | 50 | 195 | ||
| 25 KVA | 80 | 290 | ||
| 37.5 KVA | 105 | 360 | ||
| 50 KVA | 135 | 500 | ||
| 75KVA | 190 | 650 | ||
| 100 KVA | 210 | 850 | ||
| 167 KVA | 350 | 1410 |

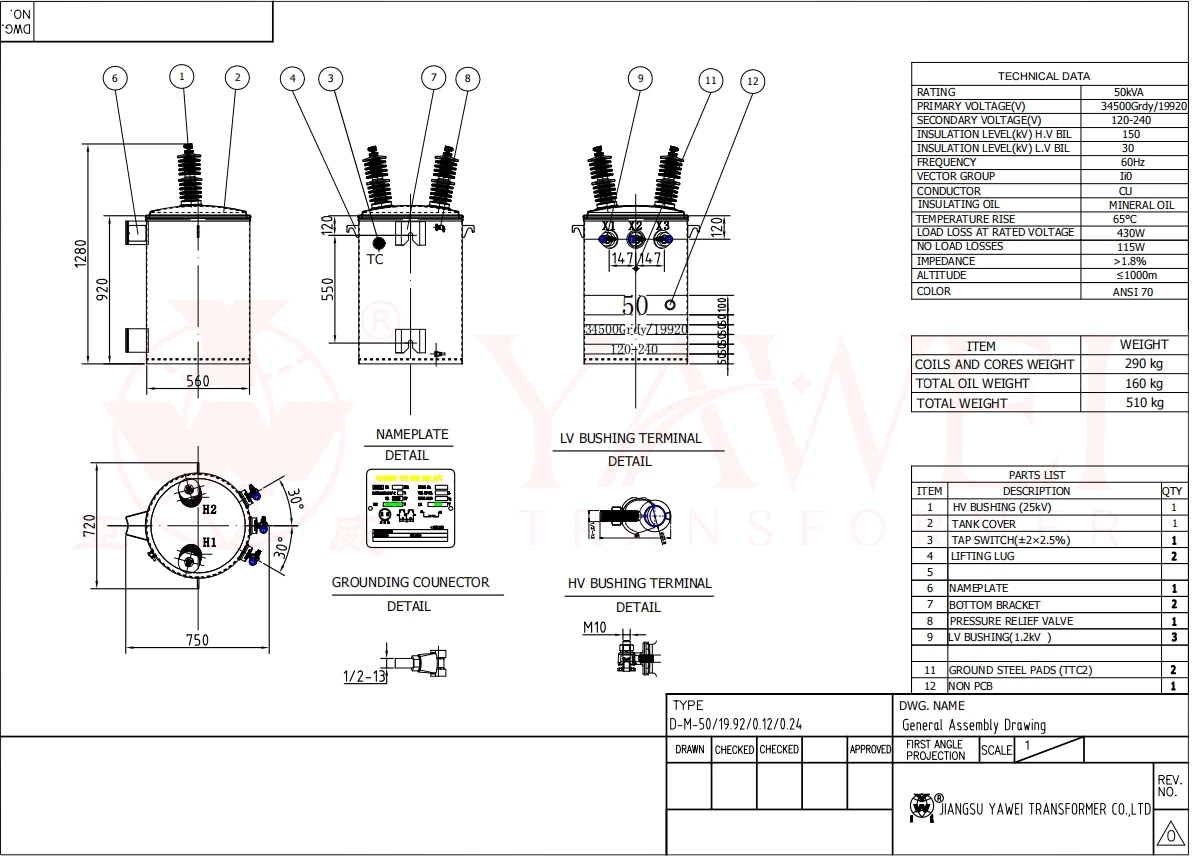

50Kva General Drawing
